45-A1(11) CARBIDE BIT 116-A1(11) CARBIDE BIT

45-A1(11) CARBIDE BIT 116-A1(11) CARBIDE BIT

$ 0.00 $ 0.00
53.60 €

  • Bit form - Single angle
  • Seat angle (α)
  • Seat lenght
  • Upper clearance angle
  • Upper clearance lenght
  • Lower clearance angle
  • Brut type
  • Design
  • Radius
Add to cart
Contact Us

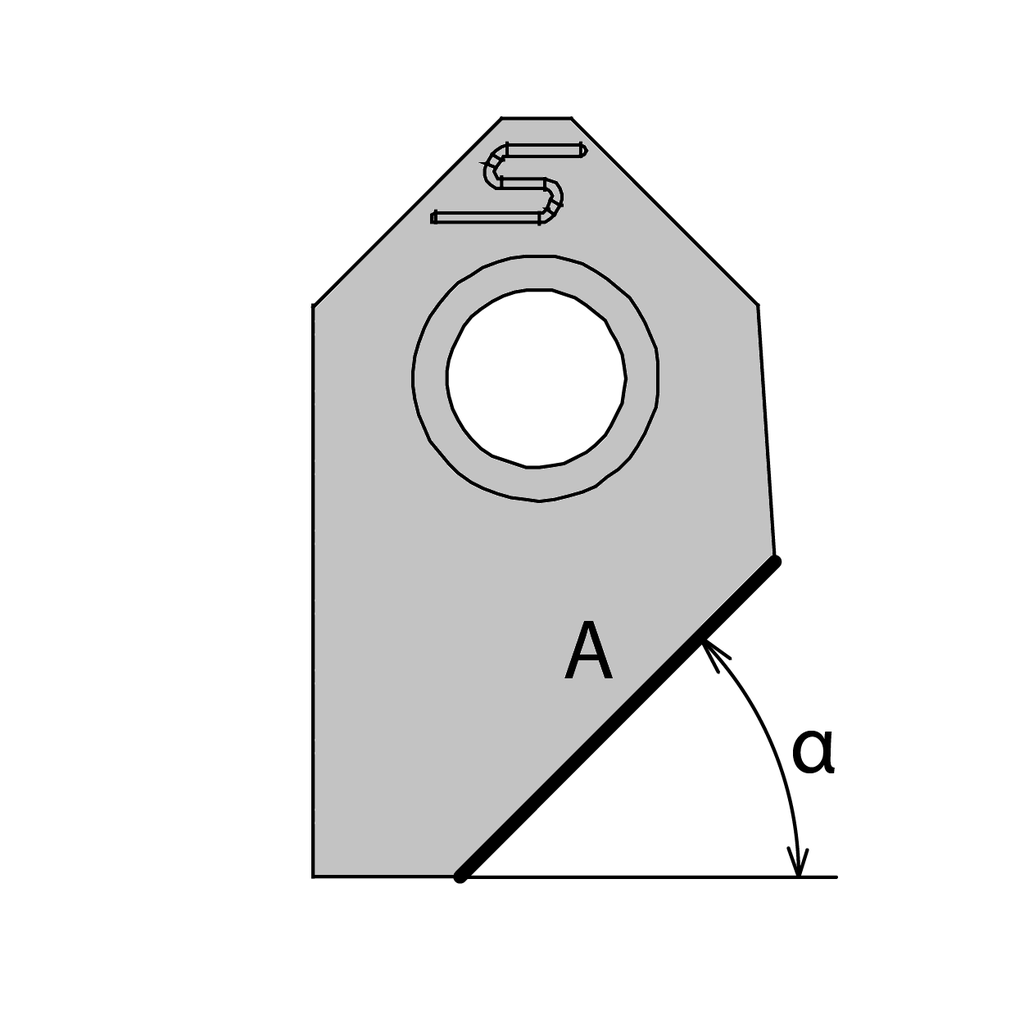

Bit form: Single angle
Seat angle (α): 45°
Seat lenght: 3.01mm [0.1185"] - ∞
Upper clearance angle: 0° - 5°
Upper clearance lenght: 0mm [0"] - 1mm [0.0394"]
Lower clearance angle: 0° - 40°
Brut type: A1 Standard
Design: Original
Radius: 0° - 5°

Internal Reference: 013764
Old FR code: 116A1 - DEP11 - 45A1-DEP 11
Seat angle (α): 45
Seat lenght (A) (A): 9
Radius (R): 0.4
Angle rake: 11
Lower clearance angle (Thêta): 0
Upper clearance angle (Beta): 0
Upper clearance lenght (B): 0
Bit form: 1
