CUTTING BLADE 20.00- 3.20

CUTTING BLADE 20.00- 3.20

$ 0.00 $ 0.00
53.60 €

  • Bit form - Single concave radius
  • Seat angle (α)
  • Seat lenght
  • Upper clearance angle
  • Upper clearance lenght
  • Lower clearance angle
  • Brut type
  • Design
  • Radius
Add to cart
Contact Us

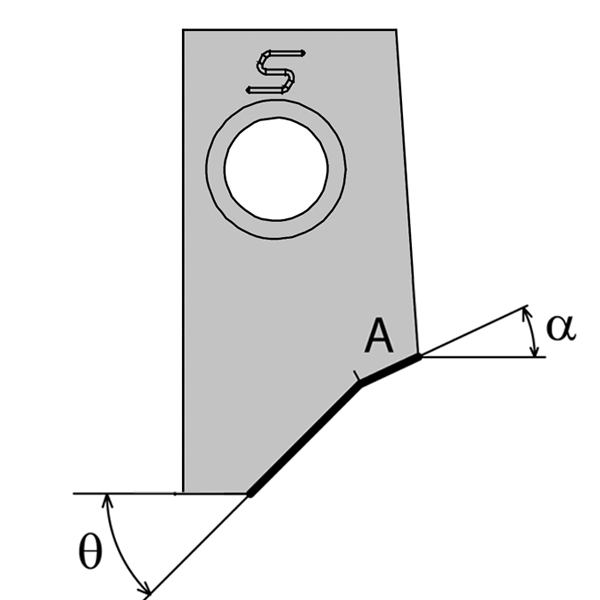

Bit form: Single concave radius
Seat angle (α): 0°
Seat lenght: 3.01mm [0.1185"] - ∞
Upper clearance angle: 15° - 20°
Upper clearance lenght: 0mm [0"] - 1mm [0.0394"]
Lower clearance angle: 50° - 60°
Brut type: E2 Standard Large
Design: New generation
Radius: 0° - 5°

Internal Reference: 022585
Old FR code: 2300100
Seat angle (α): 0
Seat lenght (A) (A): 3.2
Radius (R): 0
Angle rake: 14
Lower clearance angle (Thêta): 60
Upper clearance angle (Beta): 20
Upper clearance lenght (B): 0
Bit form: 2
