ADP317-E2 CARBIDE BIT 30.00- 2.20

ADP317-E2 CARBIDE BIT 30.00- 2.20

$ 0.00 $ 0.00
38.00 €

  • Bit form - Three angles - 30°
  • Seat angle (α)
  • Seat lenght
  • Upper clearance angle
  • Radius
  • Upper clearance lenght
  • Lower clearance angle
  • Brut type
  • Design
Add to cart
Contact Us
Bit form: Three angles - 30°
Seat angle (α): 30°
Seat lenght: 2.1mm [0.0827"] - 2.5mm [0.0984"]
Upper clearance angle: 10° - 15°
Radius: 0 mm
Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"]
Lower clearance angle: 50° - 60°
Brut type: E2 Standard Large
Design: New generation

Internal Reference: 022711

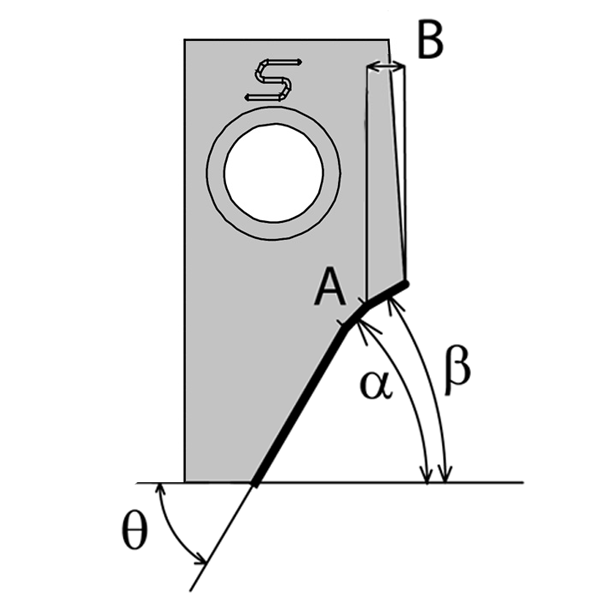

Seat angle (α): 30
Seat lenght (A) (A): 2.2
Radius (R): 0
Angle rake: 14
Lower clearance angle (Thêta): 60
Upper clearance angle (Beta): 15
Upper clearance lenght (B): 2
Bit form: 3
