CUTTING BLADE 50.00- 1.02

CUTTING BLADE 50.00- 1.02

$ 0.00 $ 0.00
53.60 €

  • Bit form - Single concave radius
  • Seat angle (α)
  • Seat lenght
  • Upper clearance angle
  • Upper clearance lenght
  • Lower clearance angle
  • Brut type
  • Design
  • Radius
Add to cart
Contact Us

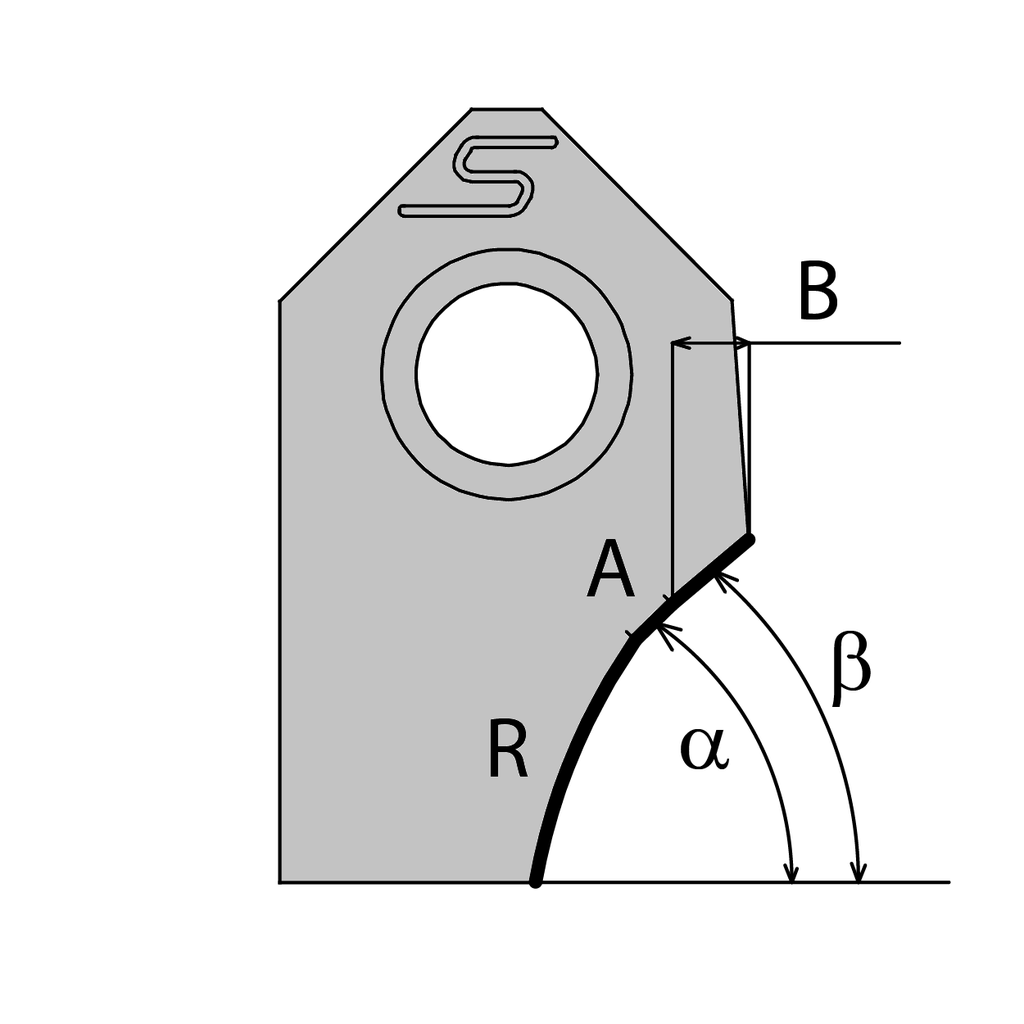

Bit form: Single concave radius
Seat angle (α): 50°
Seat lenght: 1.01mm ["0.0397] - 1.5mm [0.0591"]
Upper clearance angle: 30° - 35°
Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"]
Lower clearance angle: 0° - 40°
Brut type: A1 Standard
Design: Original
Radius: 5° - 20°

Internal Reference: 027963
Seat angle (α): 50
Seat lenght (A) (A): 1.02
Radius (R): 12
Angle rake: 8
Lower clearance angle (Thêta): 0
Upper clearance angle (Beta): 35
Upper clearance lenght (B): 1.56
Bit form: 2.2
