CUTTING BLADE 45.00- 1.20

CUTTING BLADE 45.00- 1.20

$ 0.00 $ 0.00
53.60 €

  • Bit form - Single concave radius
  • Seat angle (α)
  • Seat lenght
  • Upper clearance angle
  • Upper clearance lenght
  • Lower clearance angle
  • Brut type
  • Design
  • Radius
Add to cart
Contact Us

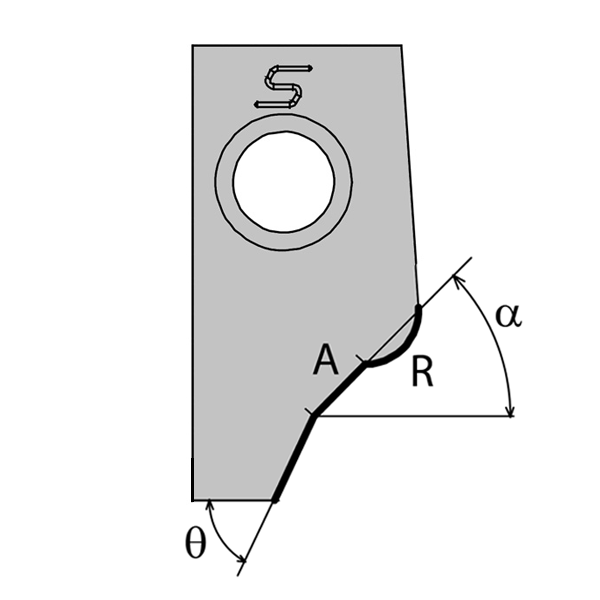

Bit form: Single concave radius
Seat angle (α): 45°
Seat lenght: 1.01mm ["0.0397] - 1.5mm [0.0591"]
Upper clearance angle: 0° - 5°
Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"]
Lower clearance angle: 60° - 70°
Brut type: E2 Standard Large
Design: New generation
Radius: 5° - 20°

Internal Reference: 922621
Old FR code: 4103400
Seat angle (α): 45
Seat lenght (A) (A): 1.2
Radius (R): 6
Angle rake: 8
Lower clearance angle (Thêta): 65
Upper clearance angle (Beta): 0
Upper clearance lenght (B): 1.77
Bit form: 2.11
